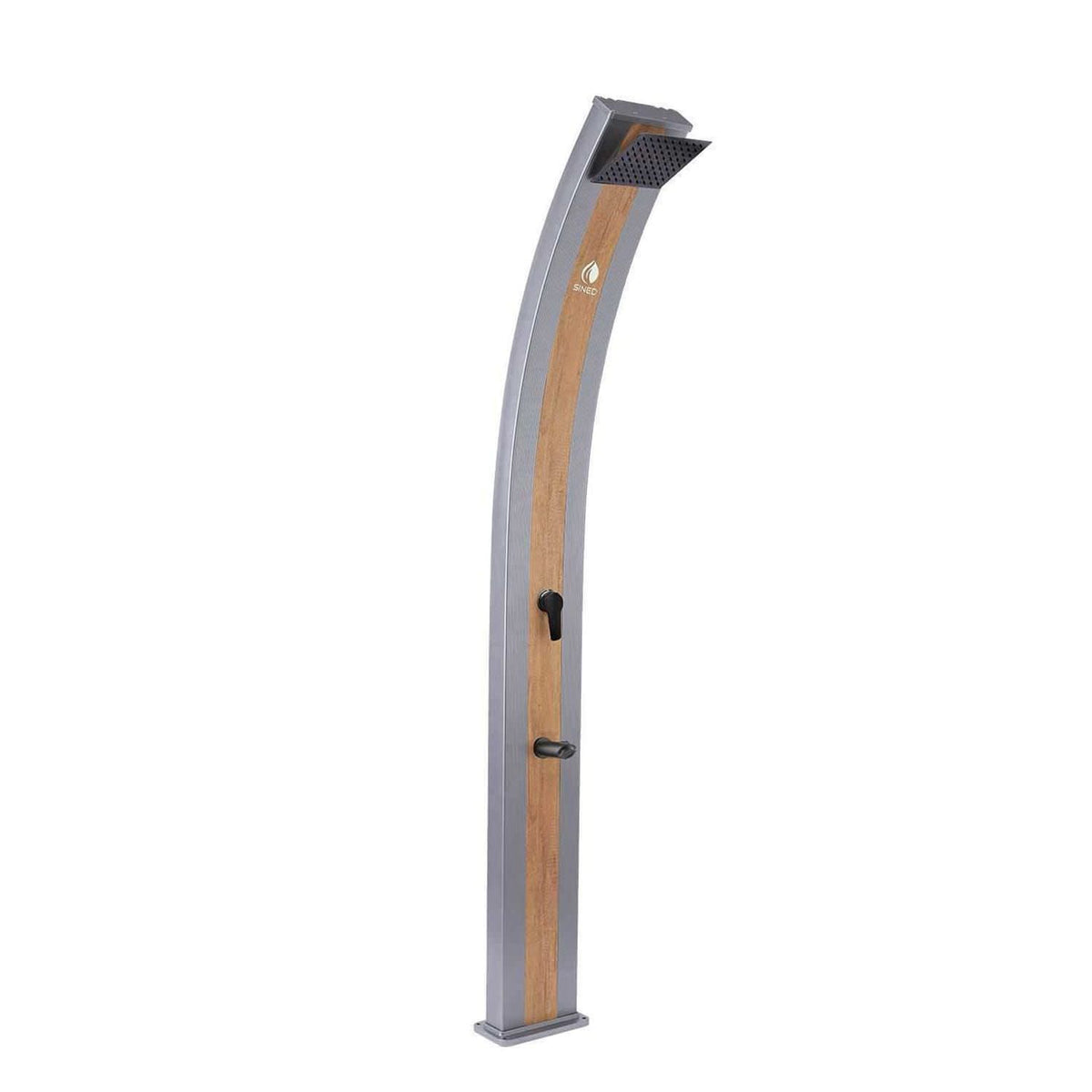

Doccia Solar Gray Aluminum Ella

Large capacity tank, 40 liters, makes this solar heated shower unique in its kind. Extremely elegant, with a central wood-colored band, it is suitable for all outdoor environments and various uses. Also perfect for gardens and pools of hotels, campsites, and holiday villages.
Totally solar, no surprises on the electric bill. The aluminum solar shower ELLA is equipped with a 40-liter tank that makes it suitable for use in both public places and private use. Also great for furnishing your outdoor spaces.
Height 224 cm, base dimensions 27.2x14.7 cm. Ideal for garden pools.

Anti-limescale filter and practical protective bag, made of 190 cloth fabric, to store the product, included as a gift.
Remember that the darker the color, the greater the heat absorption from the sun. Always place in the sunniest area throughout the day.

The shower is individually pressure tested while immersed in a water tank, after the test it is dried, rechecked, and carefully packed with custom protections.

Complete with
- Water tank 40 liters
- Height 224 cm

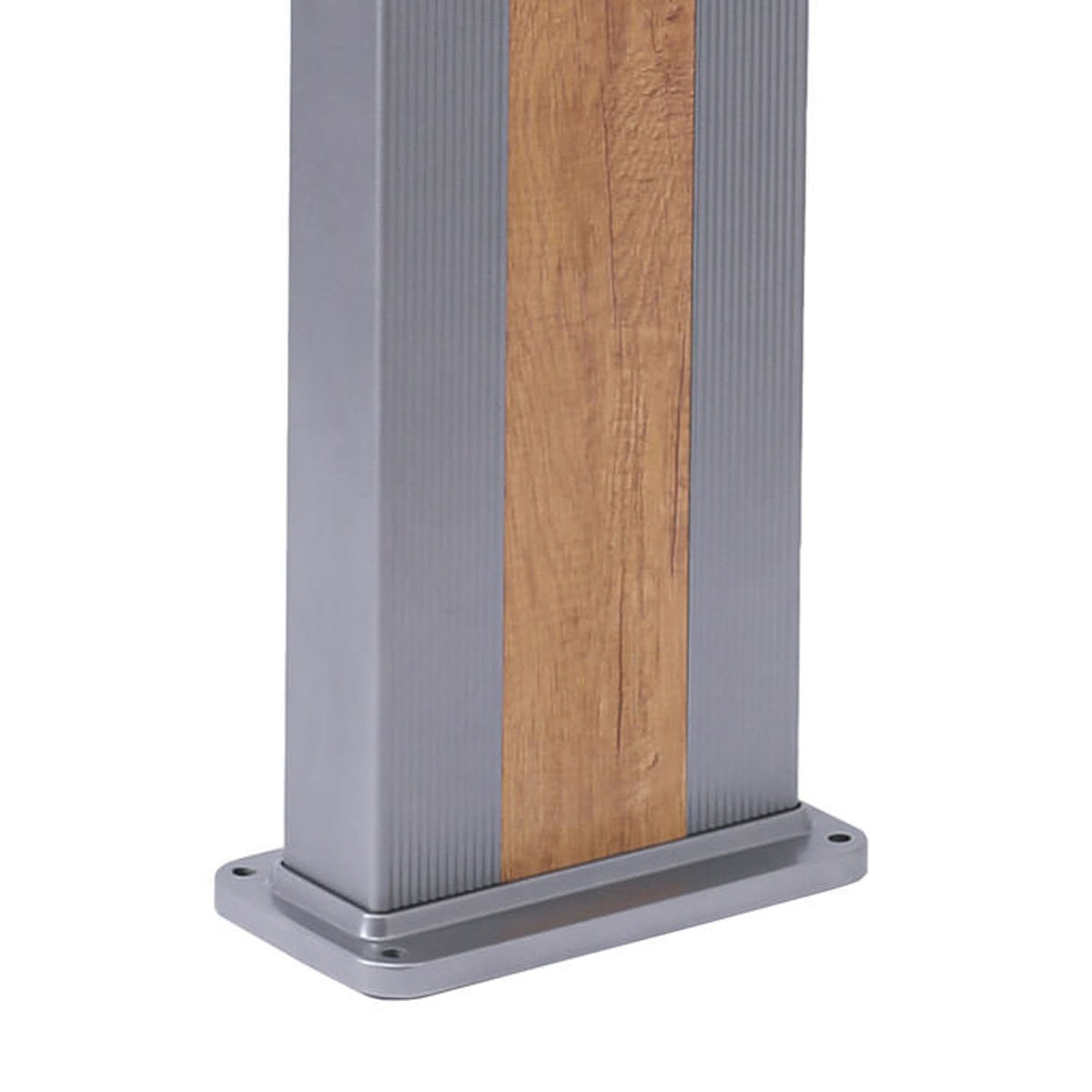

- Base dimensions 27.2x14.7 cm

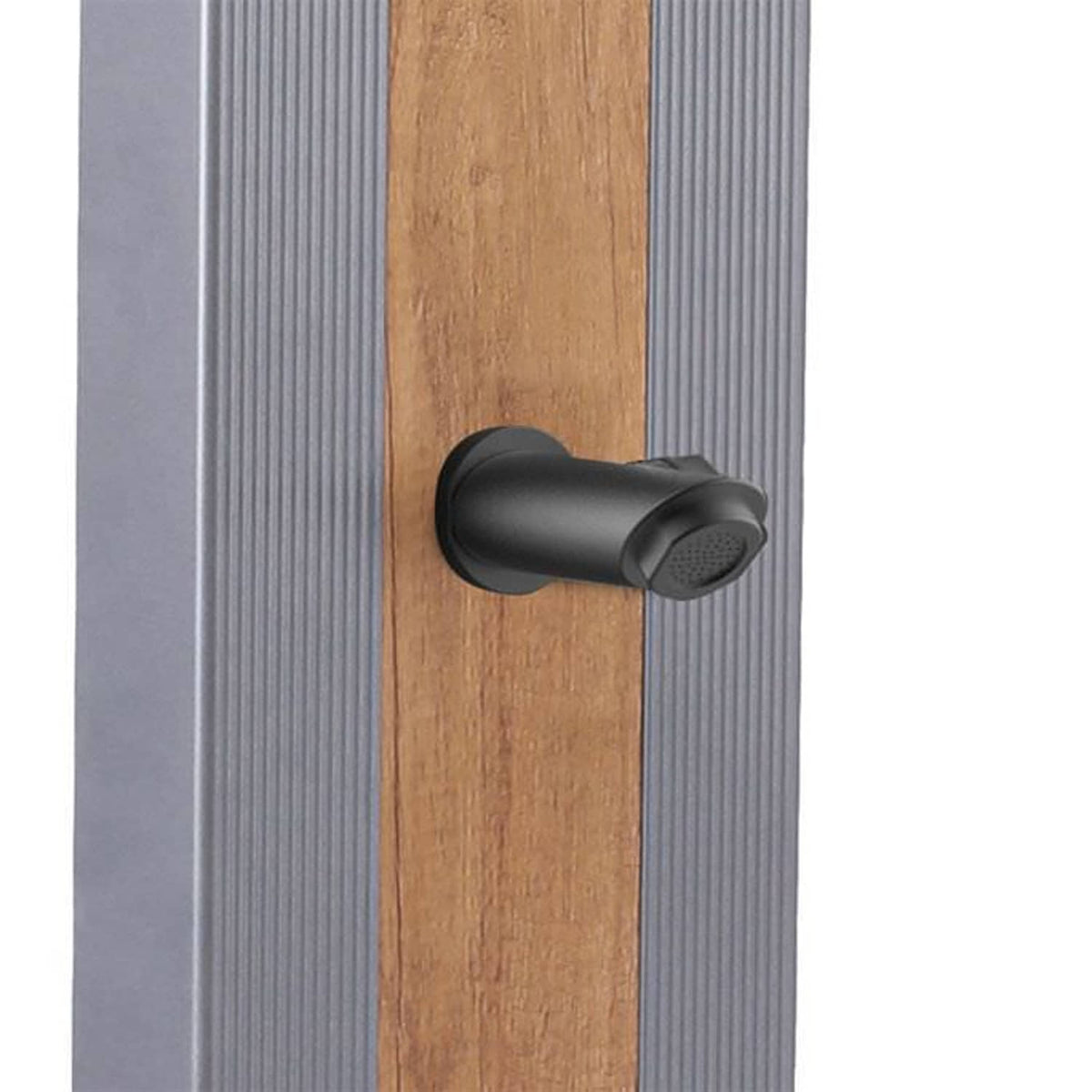

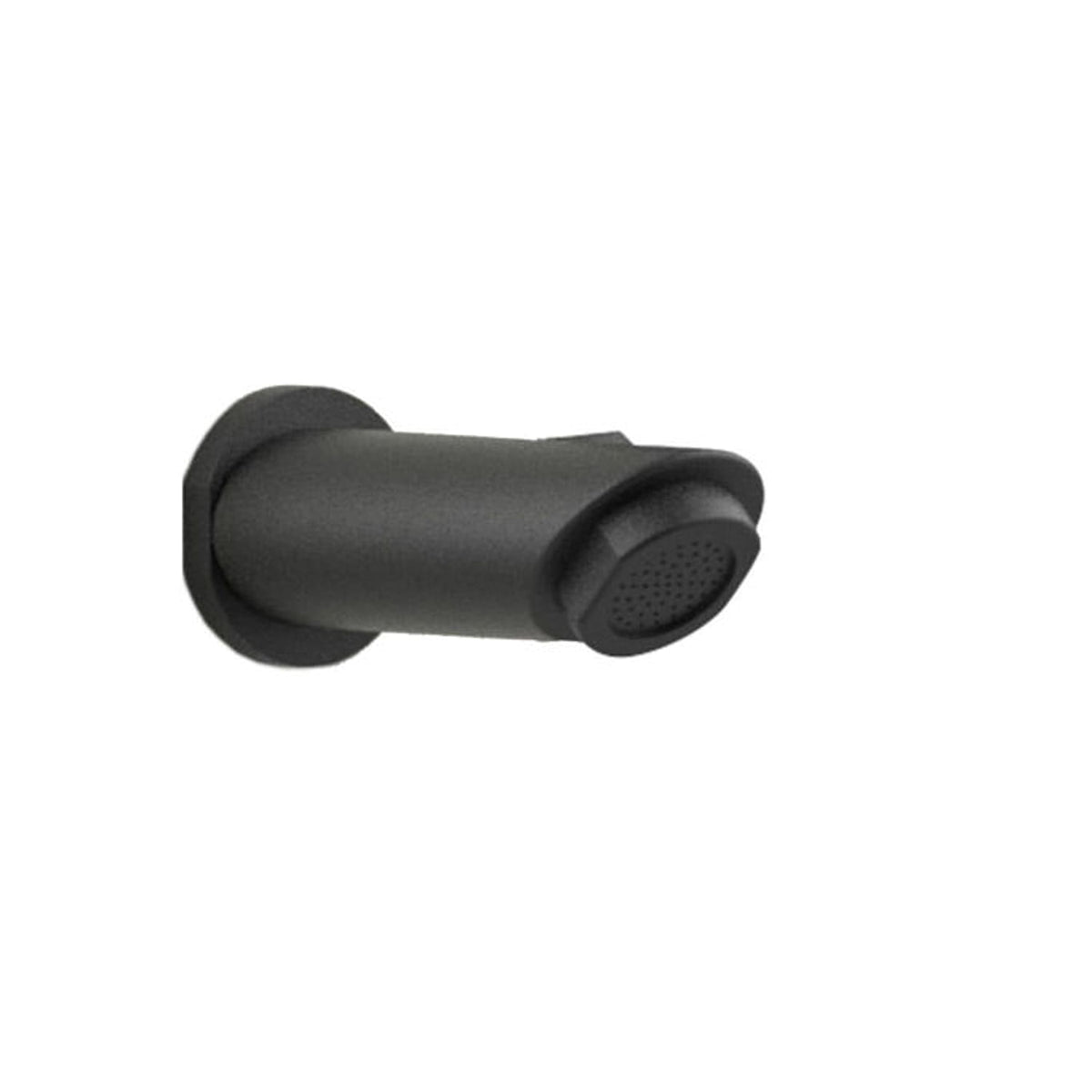

- Foot wash tap
- Special two-tone paint

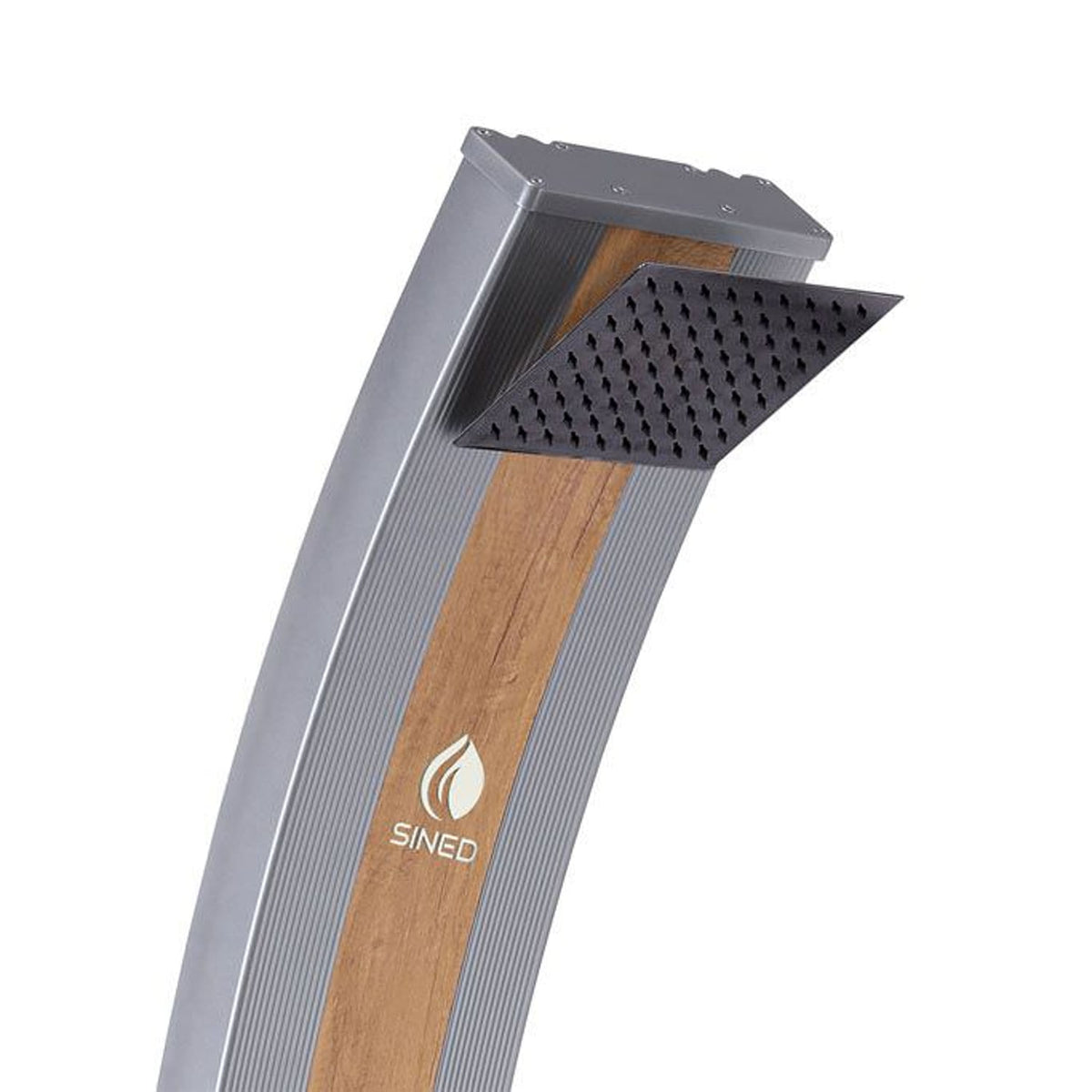

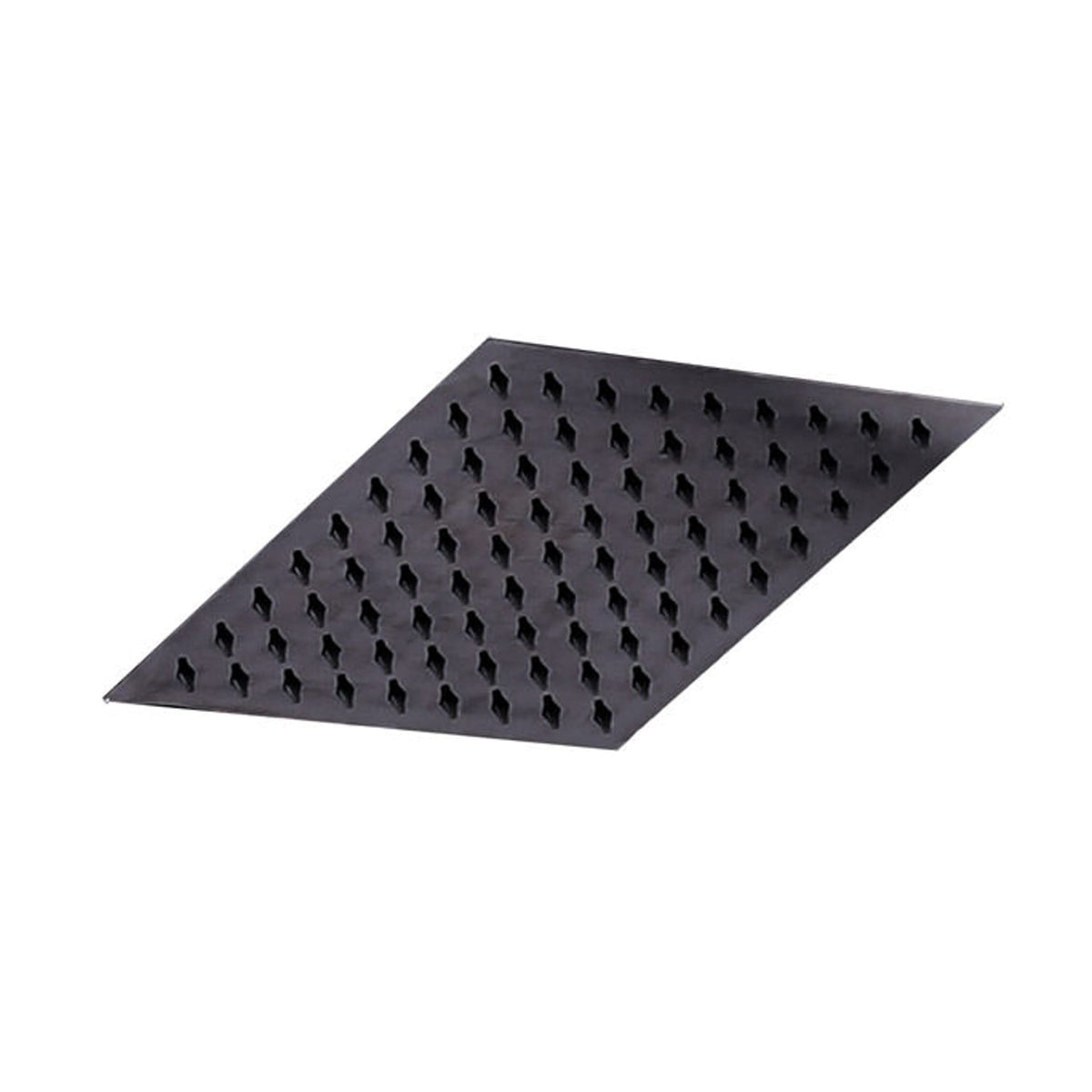

- Square chrome-plated stainless steel showerhead 20x20 cm
- Showerhead with anti-limescale nozzles
- Black brass accessories
- Anti-limescale filter

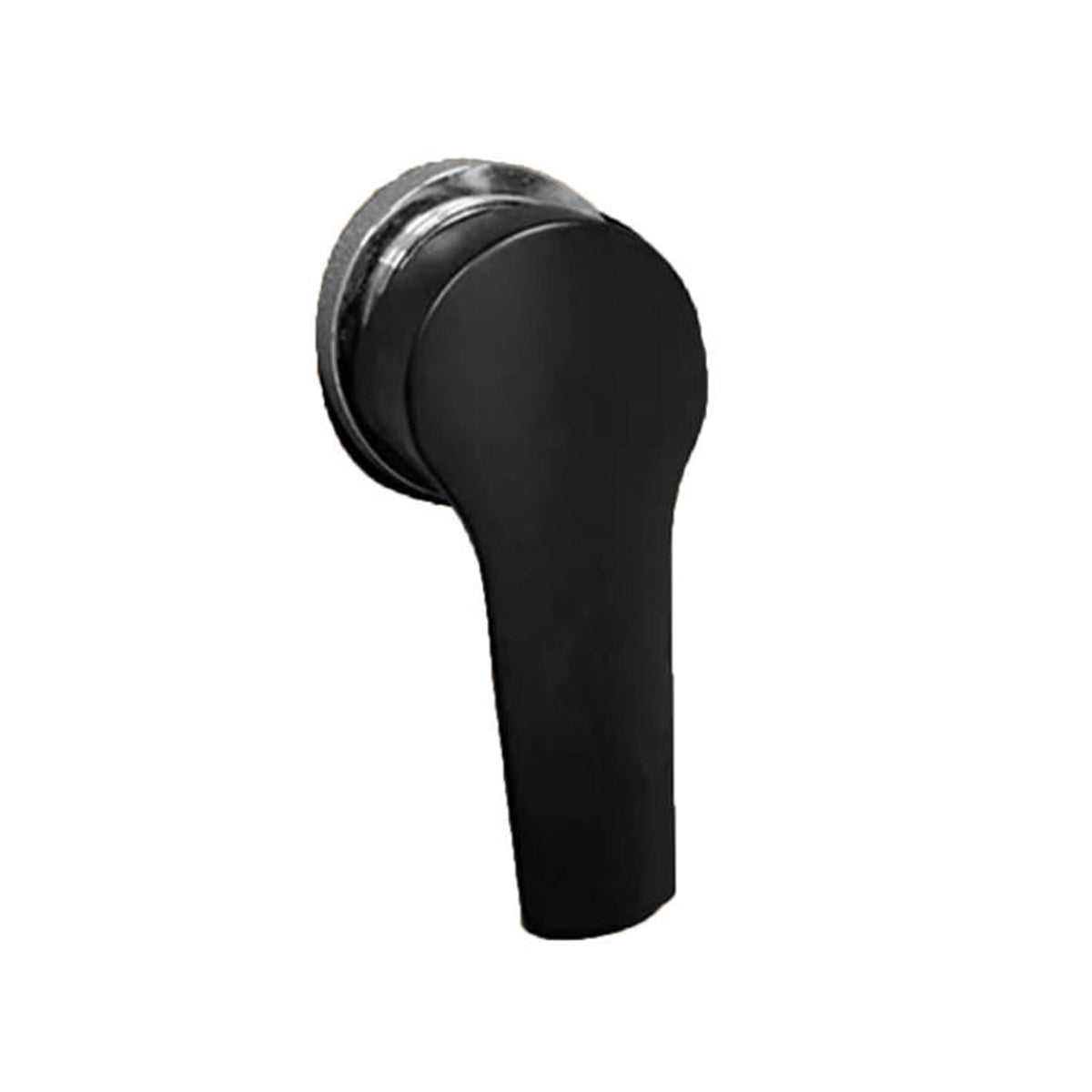

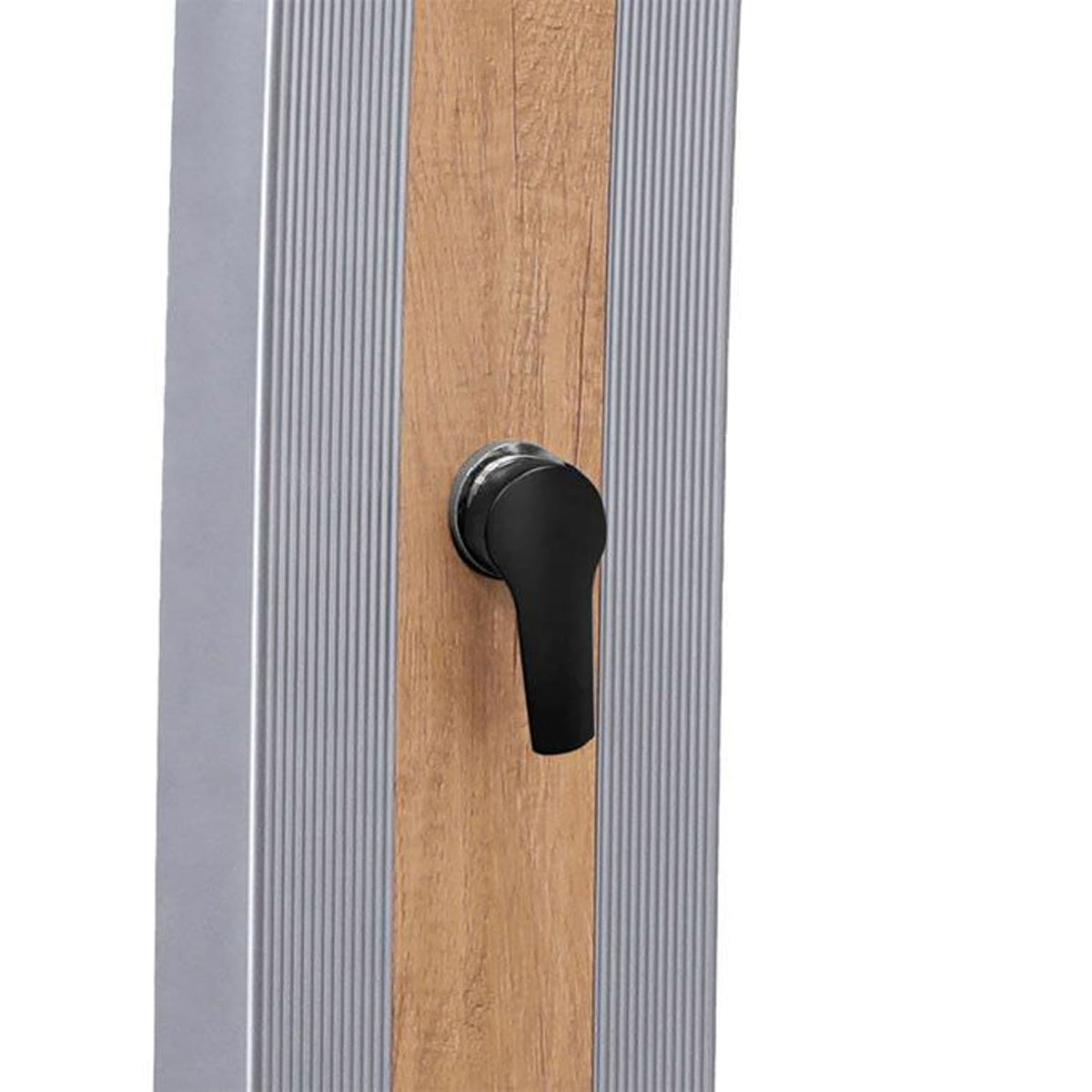

- High-quality mixer cartridge
- Recommended water pressure 3.5 bar
- Internal Braid tubes 15 Kg pressure
- Protective bag, made of 190 cloth fabric, to store the product
- Fixing plugs included
- Fixing with special protective Nylon bushings

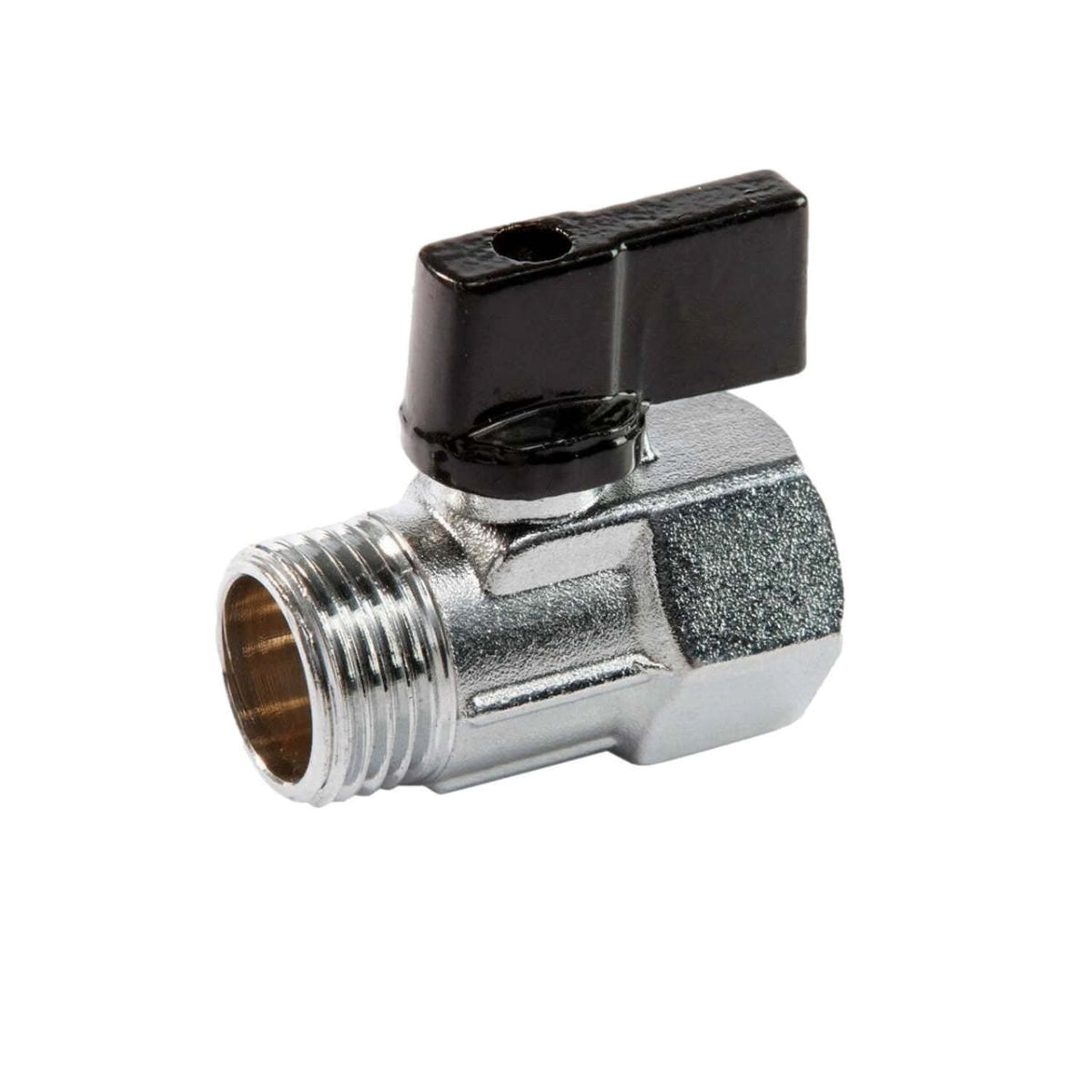

- Inlet tap

Some advice
Water flowing from the showerhead after closing the shower tap is not a defect but a technical requirement!
A solar shower is not a closed system. If hot water is requested, cold water enters the tank from below through the valve, pushing out the hot water already present in the upper part of the tank.
The entire shower body is filled with water and acts as solar heating.
The pressure formed due to heating can escape from the showerhead.

Disassembly at the end of the season
During the winter period, the shower must be COMPLETELY DRAINED of the contained water. Also, during winter, the shower must be disassembled and stored in a dry place.
Failure to observe this warning may cause frost damage to the product.
Frost damage is not covered by warranty.
1) Close the shower and remove the garden hose.

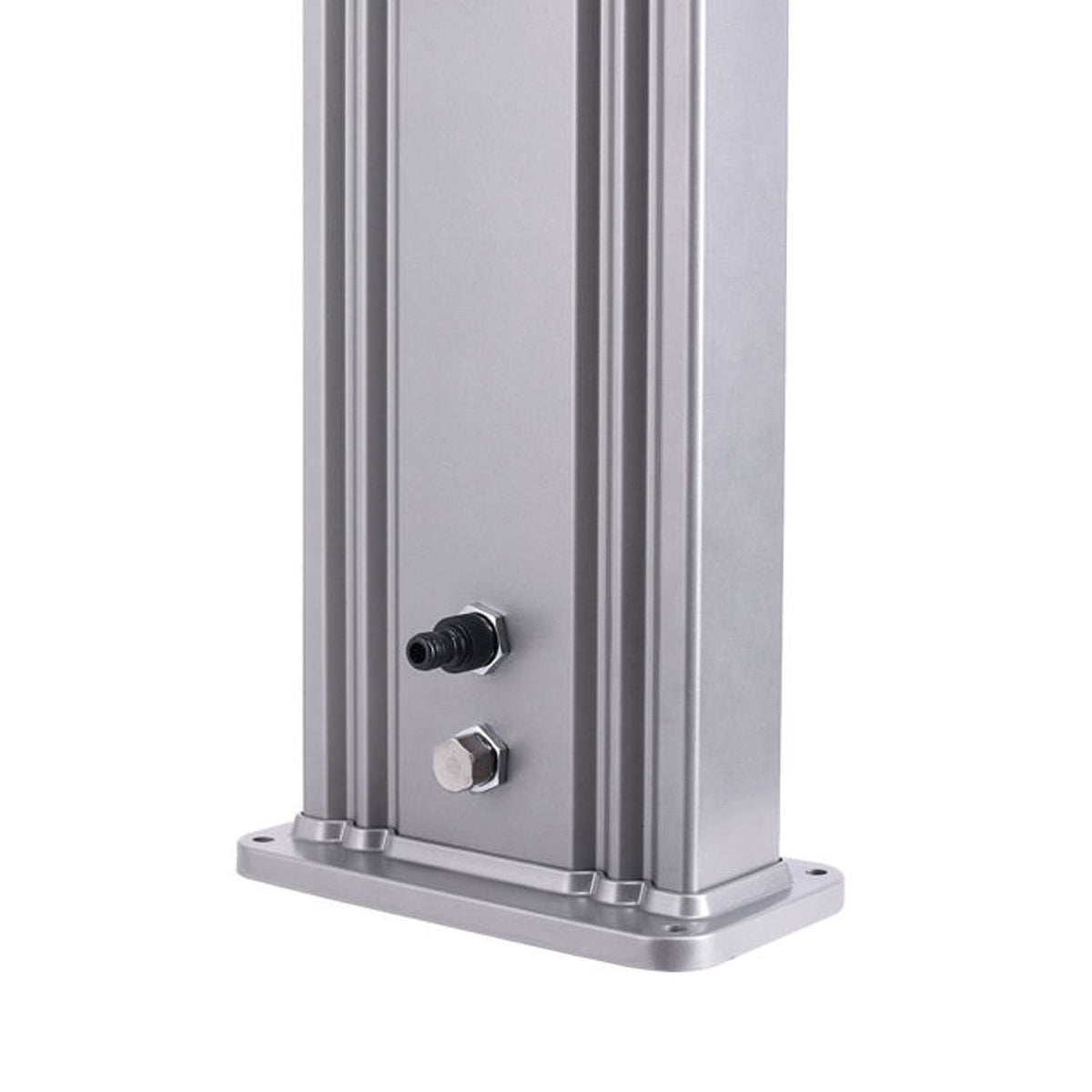

2) To drain the shower, turn the mixer to the “HOT” position (about 2 minutes) and open the appropriate drain plug.
3) Remove the fixing screws on the base and drain the remaining water from the lower part of the shower by tilting the shower (absolutely necessary operation!)

Cleaning
For cleaning, use common commercial detergents. Do not use detergents containing solvents, abrasive detergents, or hard sponges, brushes, etc.
